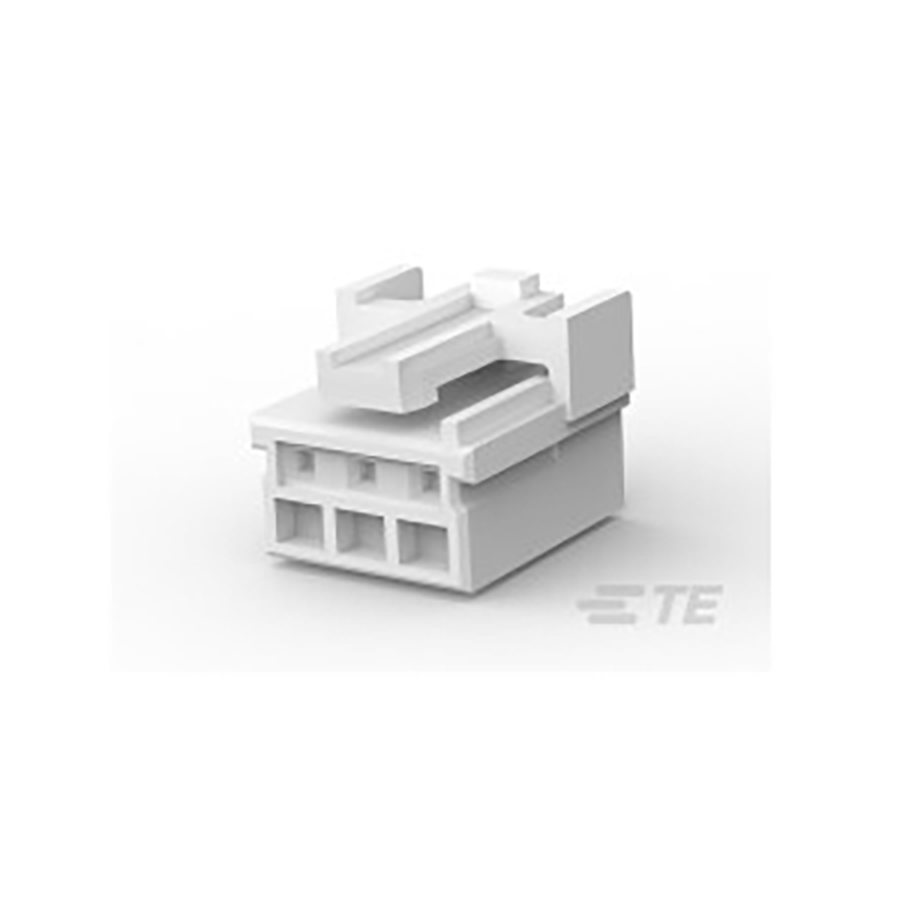

1971030-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1971030-3
Datasheet:
Description:
Headers and Wire Housings Cable Plug, Socket Number of Positions:3 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 7.54 mm |
| Width | 6.75 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Halogen Free | Not Halogen Free |
| RoHS | Compliant |
| Pitch | 2 mm |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Plug, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Housing Color | Natural |
| Preloaded | No |
| Sealable | No |
Stock: 3701
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.10430 | $1.04300 |
| 50 | $0.09281 | $4.64050 |
| 100 | $0.08259 | $8.25900 |
| 500 | $0.06749 | $33.74500 |
| 1000 | $0.05515 | $55.15000 |
| 3000 | $0.04506 | $135.18000 |
| 5000 | $0.04246 | $212.30000 |
| 10000 | $0.04001 | $400.10000 |
